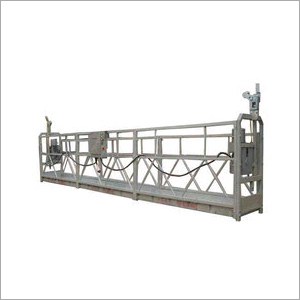

Suspended Platform Cradle System

Suspended Platform Cradle System
Suspended Platform Cradle System
Send Inquiry
Product Code : 11
Product Description
Since our inception in this domain, we have been engrossed in manufacturing and supplying a top range of Suspended Platform Cradle System that finds its applications during maintenance of residential, commercial and industrial buildings. This system is manufactured using quality approved components by our adroit professionals. Featured with various components such as a hoist, rope, control panel other related items, it is known for its smooth functionality. This system is highly reliable because it is made using advanced technology. In addition, offered Suspended Platform Cradle System is checked at our ends to ensure its robustness.
Specifications:
  • MODEL :IFS800
  • Platform size :2.5mtr. x3= (7.5mtr.)
  • Material of platform :Steel Platform
  • Balance Weight :1000kgs
  • Rated load :800kgs
  • Ascend Speed (working speed) :9-11m/min
  • Wire rope :4x31 sw-fc-9.1
  • Rated lifting force :5kn
ELECTRIC MOTOR
  • Power :1.8kwx 2
  • Voltage :Ac 415v 3 phase
  • Breaking :15nm
  • Safety lock :Tilt proof safety lock (2 Nos.)
SUSPENDED MECHANISM
  • Height adjustment :1.15m-1.75 m
  • Front Beam extension :1.1m-1.7m
  • Steel wire rope :200mtr.x4=800mtr.

Technical Specifications:

Minimum Order Quantity

1 Unit

Assembly

Double Mast

Features

Foldable, Height Adjustable

Installation

Provided

Load Capacity

800 kg

Model

zlp 800

Platform Width (mm)

720 mm

Platform length (mm)

7.5 mtr

Suspended Height(m)

1.15m-2m

Type of Mast

Double Mast

Work Surface

Painted Steel, Stainless Steel

Working Height (meters)

100 mtrs.

Lift Speed

8.8 m/min

Voltage

110-690 V
